$185.27 – $204.64 CAD

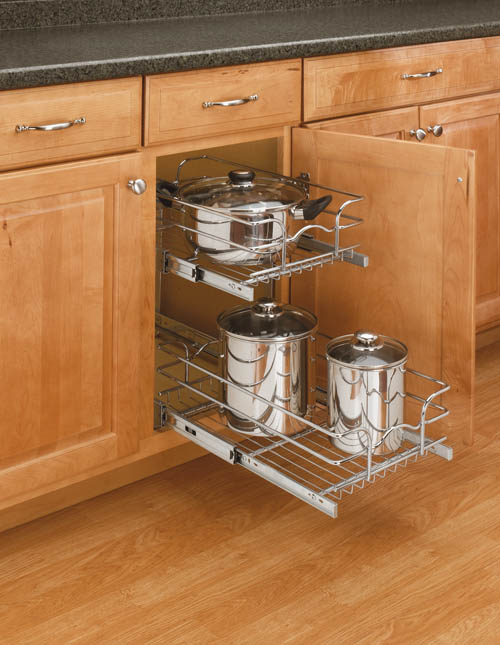

This Double Wire Basket by Rev-A-Shelf features full-extension ball bearing slides and Heavy-Duty Chrome plated baskets. Installation is simple as well, mount the bottom bracket to the floor of your cabinet, then attach the upper bracket using the back of the cabinet and face frame. The 5WB reduced depth series is available with 18″ slides and a variety of widths to fit many different applications.
| Physical Specifications | |||||
| Part # | Width | Depth | Height | Weight | Color: Finish |
|---|---|---|---|---|---|
| 5WB2-0918-CR | 8-3/4″ | 18″ | 19″ | 16.95 lbs. | Chrome: Wire |
| 5WB2-1218-CR | 11-3/4″ | 18″ | 19″ | 19.2 lbs. | Chrome: Wire |
| Minimum Cabinet Opening | ||||||
| Face Frame | Frameless | |||||
|---|---|---|---|---|---|---|
| Part # | Width | Depth | Height | Width | Depth | Height |
| 5WB2-0918-CR | 8-1/2″ | 18-1/8″ | 19-1/8″ | 8-7/8″ | 18-1/4″ | 19-1/8″ |
| 5WB2-1218-CR | 11-1/2″ | 18-1/8″ | 19-1/8″ | 11-7/8″ | 18-1/4″ | 19-1/8″ |
| Sizes: | 5WB2-0918-CR 8-3/4", 5WB2-1218-CR 11-3/4" |
|---|
